Seven Inc. Cheap ALARM PANEL, model CP200 sends digital alarm or verbal
messages over telephone line!
Copyrights
Micro Seven, Inc. 2025
MAIN
FEATURES
-Made in U.S.A.
-Panic switch, Burglar loop and sound detection
-temperature and humidity monitor
-Internet
features
-Contact-ID
alarm messages or voice call for reporting types of alarm
-Connection
to other CP200
OTHER
FEATURES:
-temperature
and humidity detecting high or low room temperature or high humidity problem of
your crawl space
-Detecting
loop input for break-in
-microphone
input for detecting loud noise of breaking window glass
-panic
switch input for medical or other emergency purpose
-Email
and/or text message to smartphones (your own SMTP server is required.)
-IP
message to your work PC
-regular
loop inputs
-Recording
your voice messages for types of alarm
-Email
transmission (requires your own email server)
-Transmission
of unique IP messages
-Store
temperature and humidity data inside EEROM or transmit the data to IP server at
certain interval
-wall-mountable

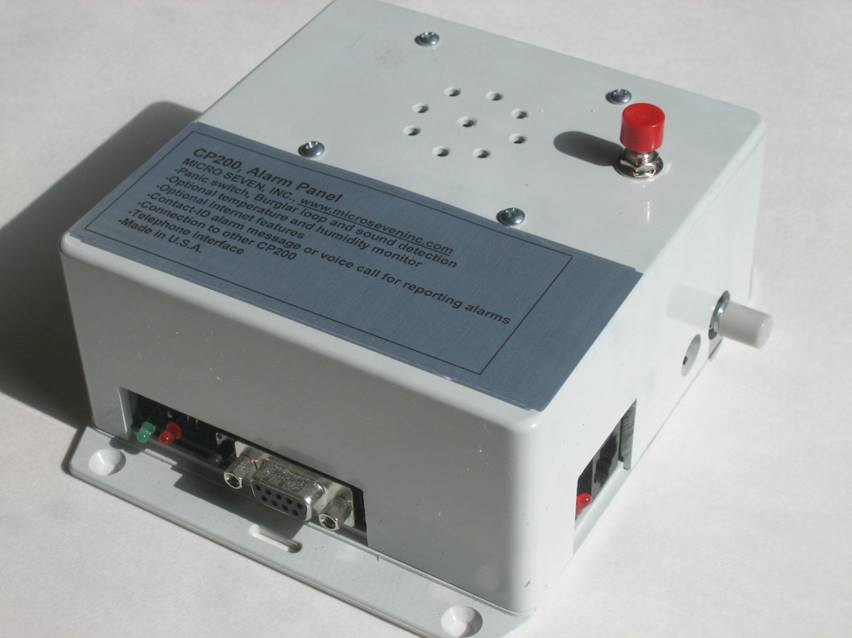

Model
CP200, Alarm Panel with Burglary Loop, Sound Detector, Panic Button (red
switch), temperature/humidity monitor, and Wi-Fi /Internet is shown above with
telephone jack, RS232 connector, Arm, violation status, power status, and
telephone off-hook LEDs are shown. Audio speaker is for siren and voice
announcement of incident.

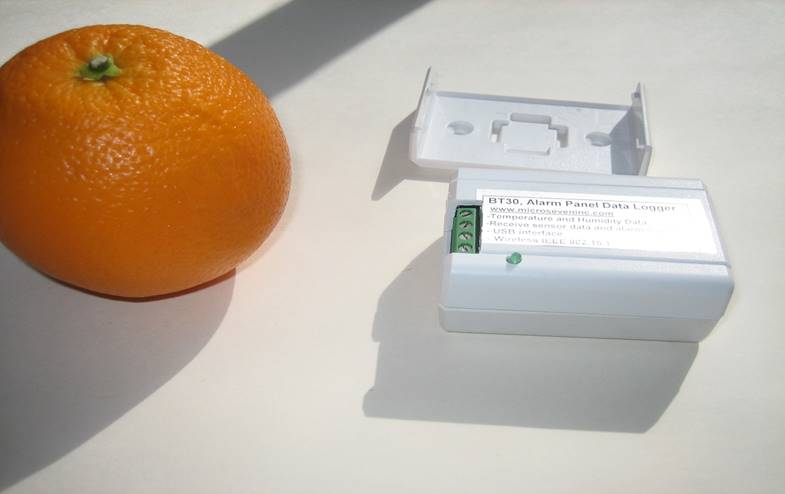

External
temperature/humidity box, BT30 with wall-mount bracket is available as shown
below. Temperature and humidity data is sent to CP200 with cable.

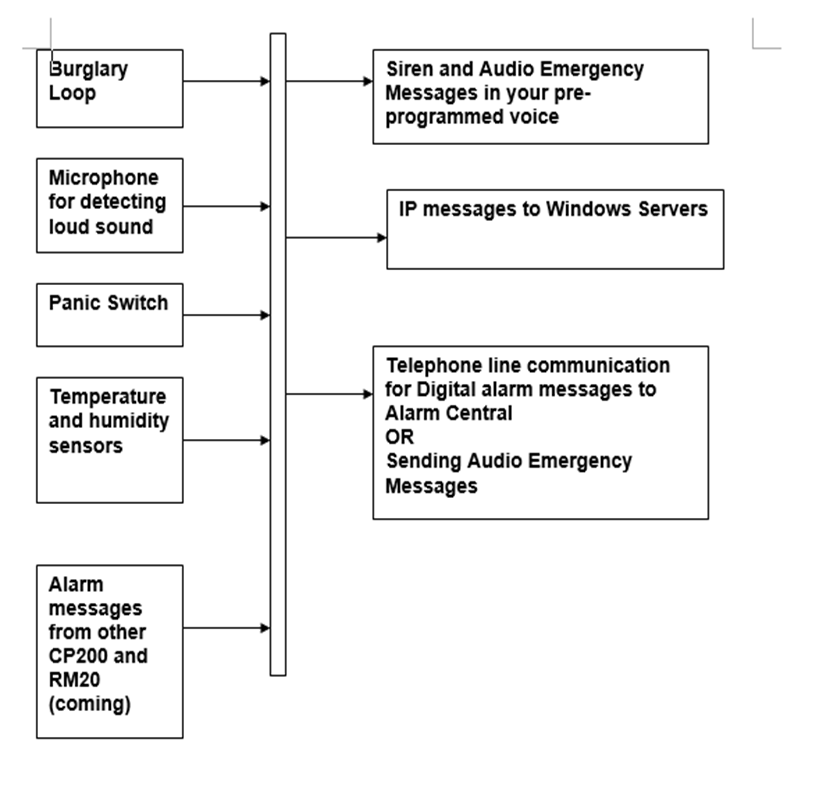

Alarm20 System BlockDiagram
for CP200
Introduction
CP200 is a general-purpose alarm panel that
detects burglary loop for violation, excessive sound, medical/panic condition
or high/low ambient temperature and humidity conditions. CP200 sends alarm
messages over telephone lines to an alarm central station or delvers voiced
alarm messages to your families, parents, guardian, or friends.
With email (SMTP) server, email and text
messages are transmitted in addition to telephone reporting.
CP200 is also able to receive emergency
messages from another CP200 for sounding sirens and transmitting alarm messages
via telephone lines.
Weight: 1 lbs
Size: 5”x6”x2.5”
Temperature and Humidity Monitor
Data
is transmitted to an IP server consisted by your PC and provided Windows app
continuously. And alarm signals are produced if their data are violated against
high and low of temperature and humidity thresholds.
Display both in °C and °F.
Temperature Measurement Accuracy: +/- 2 °C.
When temperature probe is located inside CP200 case,
temperature rises typically 1°C due to internal power dissipation.
External temperature/humidity box, BT30 with wall-mount
bracket is also available.
Also the same temperature and humidity data may be stored inside
CP200 EEROM for a later upload to PC.

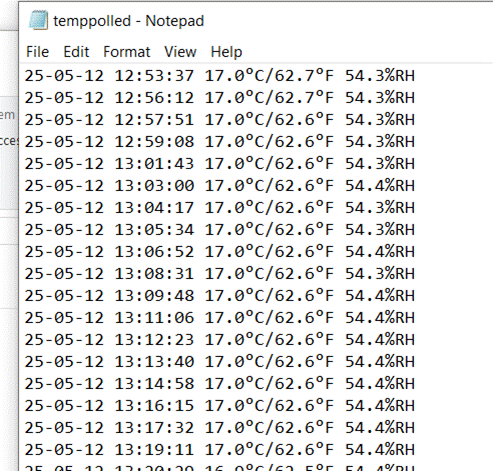

A part of temperature and humidity
history data inside a text file “temppolled.txt” is shown below. “25-05-12
12:53;37” is UTC time in UK. The EEROM has a capacity for over two hundreds
test result. The polling interval may be set between two and ten minutes.
Alarm messages:
1.
Digital alarm message (Contact-ID) or voice message
via telephone line
2.
Custom IP message to Windows server.
3.
Email or text message (requires your own SMTP
server)
Voice messages:
The voice message by telephone consists of
identification field with name and address and description field of the
following:
1.
Burglary
2.
Excessive sound
3.
Panic/Medical
4.
Temperature
5.
Humidity
6.
Test
Voices may be recorded and played using app.
Built-in microphone for detecting sounds and your
own voice recording for voice messages in telephone:
Built-in IP Server:
IP server inside CP200 receives IP messages from
other CP200s or PC Client functions for generating siren sounds and dialing and
transmission of Contact-ID messages or voice messages over telephone networks.
LED indicators:
Telephone off-hook
Power indicator
Arm indicator
Violation indicator
Arming on/off switch
Power on/off switch
RS232 connector: 115200 baud
Panic Switch
Panel-mounted audio speaker
Temperature
and humidity data polling:
Temperature/humidity
data polling result may be sent to PC or stored in EEROM as history data.
Provided software:
1.

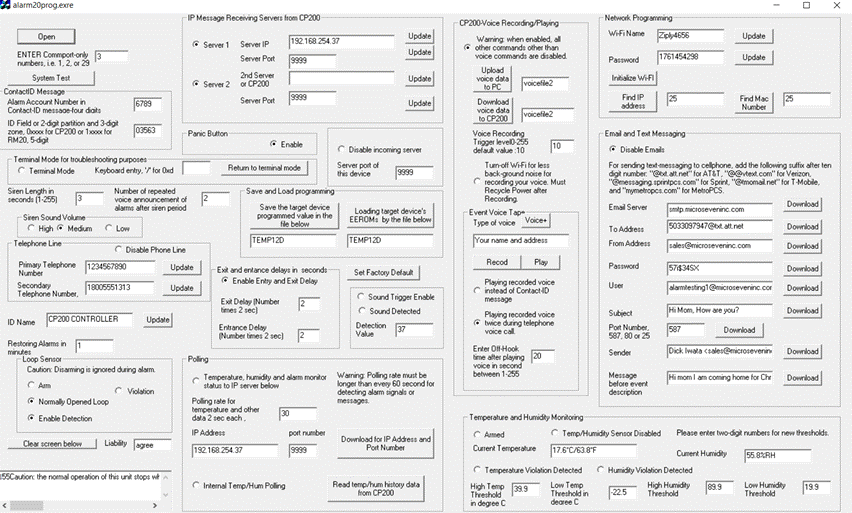

Alarm20prog.exe
PC app RS232 programming for everything CP200 needed for setting including
Wi-Fi, IP servers and port numbers for IP messaging, email/text messaging,
siren length, arming, loop normally close or open, sound triggering,
temperature and humidity high/low threshold, system test, temp/humid polling,
telephone numbers, Contact ID formats, voice message recording/playing, voice
files downloading/uploading and save/load programmed data. The typical entire
screen shot of Alarm20prog.exe is shown below:
2.

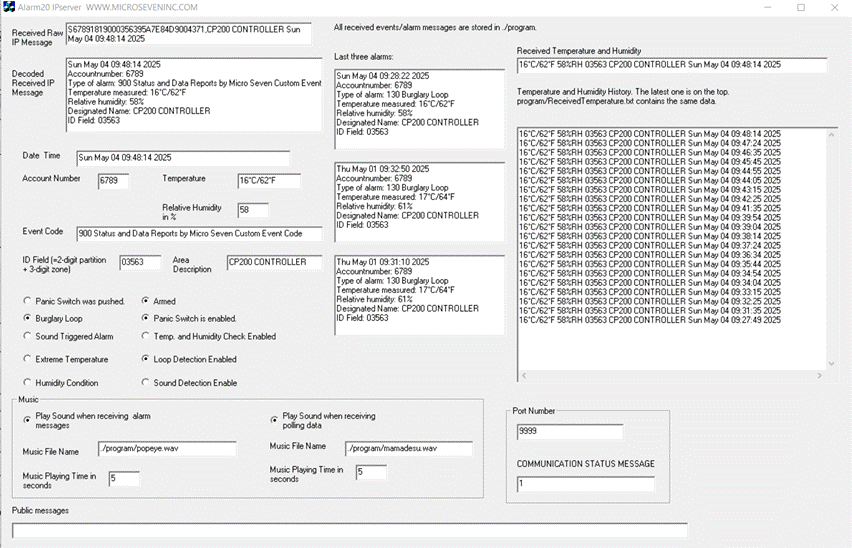

Server software for receiving IP messages from cp200
for alarms and polling data of temperature and humidity. When an alarm is
received at PC, a wave-file music is played and alarm is displayed with type of
events, CP200 location, date/time information, and temperature/humidity data
are shown on the screen. History data of all alarm is stored in a file

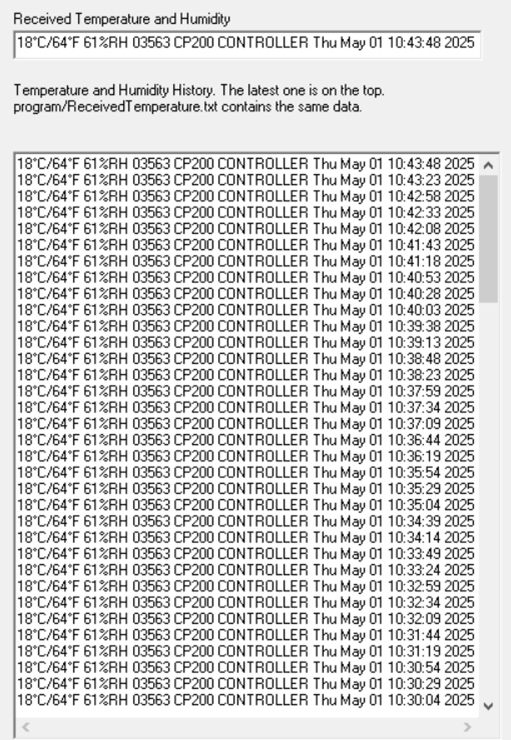

directory for archival. The polling temperature and humidity data is shown with
temperature in Centigrade and Fahrenheit and relative humidity in % on its right-hand
side of the screen. The history of temperature and humidity data is stored in a
separate file holder. The polling interval is programmable using Alarm20prog
app. The screen below shows polling interval was selected 35 seconds. The
number “03565 CP200 CONTROLLER” identifies the polling data transmitting
device. A different wave music file may be played when receiving polling data.

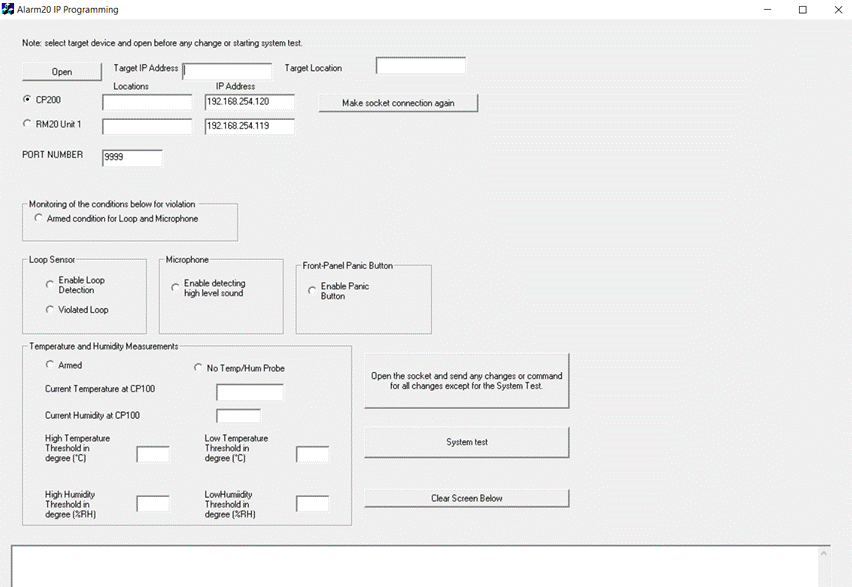

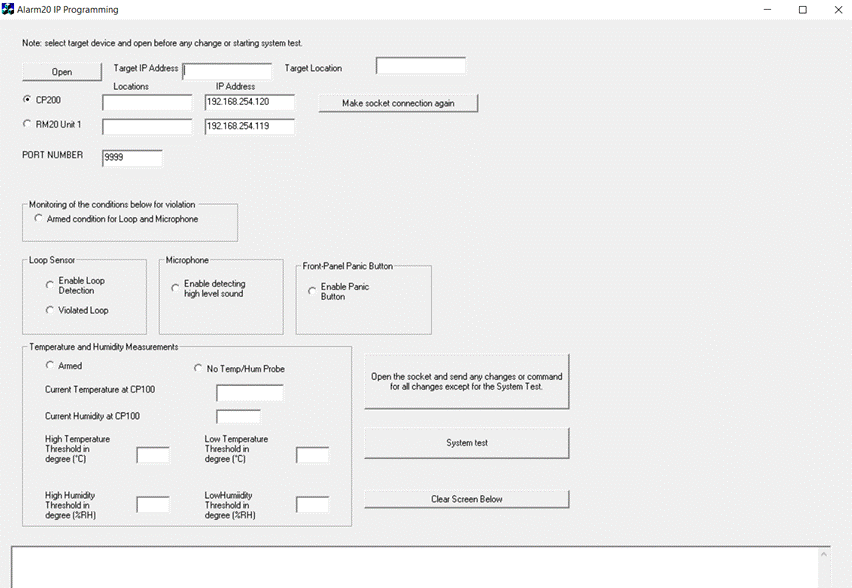

3. PC Client Software,
Alarm20IPprogram is shown below:
This app
is for reading status and programmed value without RS232 interface.
Alarm20program.exe is still needed for reading status and programming for all
the features.
