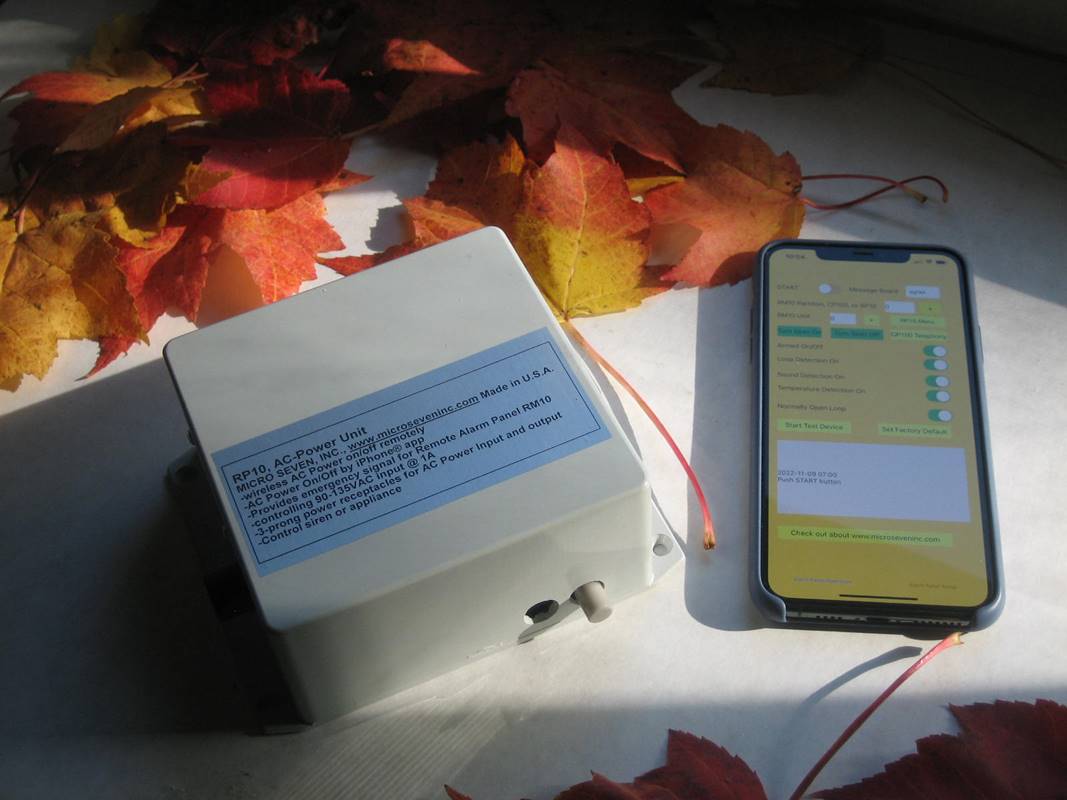

Micro Seven Inc. model RP10, AC-Power Unit switches AC power
on/off wirelessly by smartphone or in emergency conditions by Remote Alarm
Panel, RM10.
Copyrights Micro Seven, Inc., 2024
Apple, the Apple logo, iPhone, and iPad
are trademarks of Apple
Inc., registered
in the U.S. and other countries and regions. App Store is a service mark of Apple Inc.
FEATURES
-90-250VAC,
50/60Hz power switch on/off
-turned
on/off by iPhone® app, “alarm10”
-turned
on by Remote Alarm Panel RM10 for connecting a siren unit

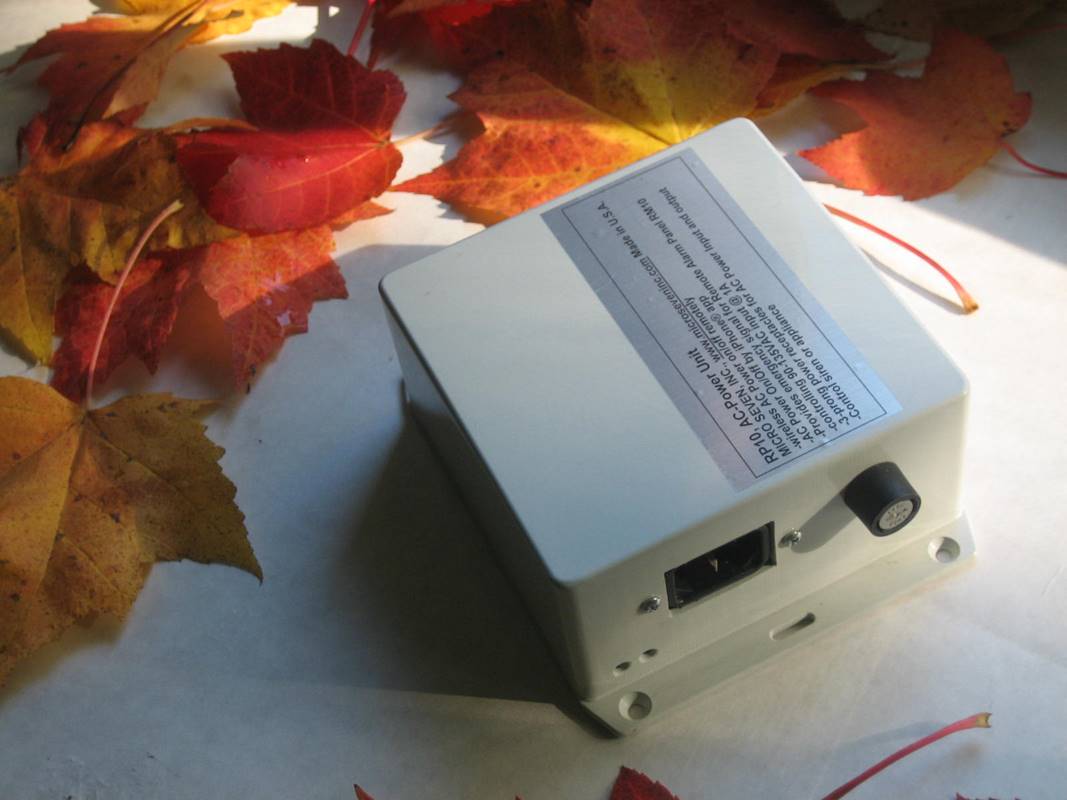

The above picture shows
AC power input connector.

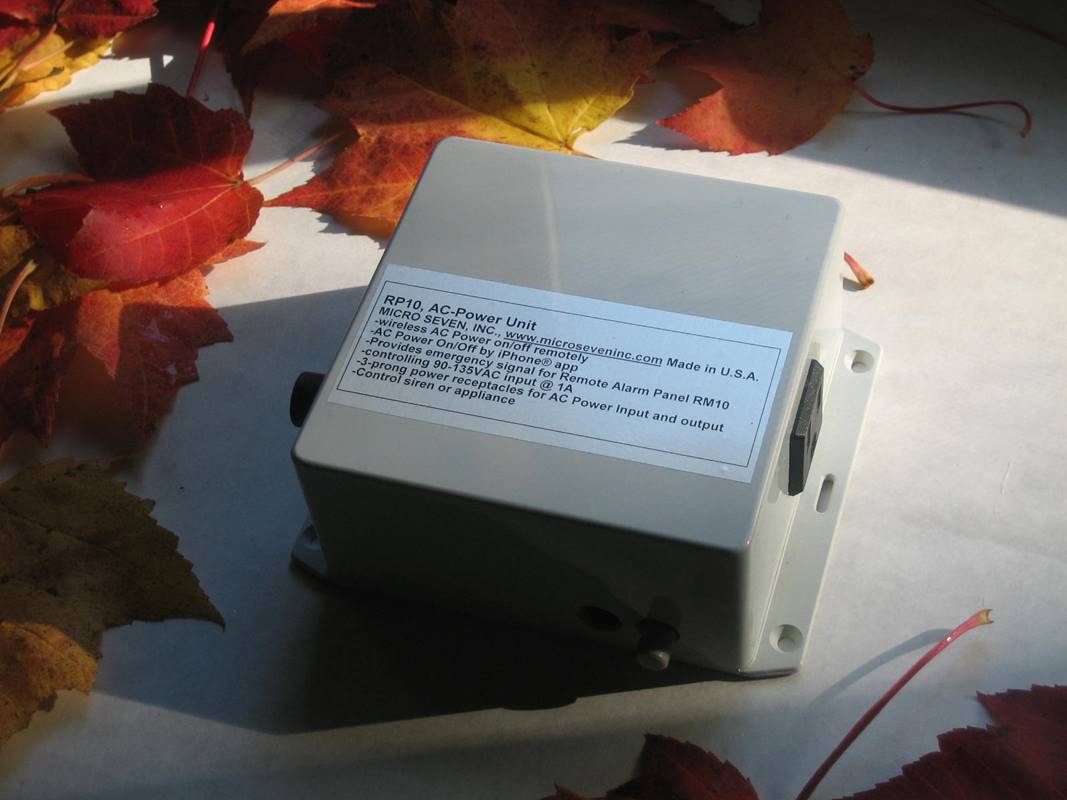

The above picture shows
AC Power output connector.
Specifications:
Size: 5”x5”x3”
Wireless operation distance: about 50 feet
Operating temperature: -10 to +40°C
Operating environment: Indoor use
only
Power input: by provided AC/DC power adapter
Switching AC volt: 90-250V, 1A
Power relay output: Power Relay
Output 1
Optional relay output: Power Relay
Output 2 and 3
Power relay output 1: Power relay output 1 is turned on
automatically by RM10 is reporting alarming event and RP10 output is enabled
for RM10.
Warranty: six months
iPhone app:

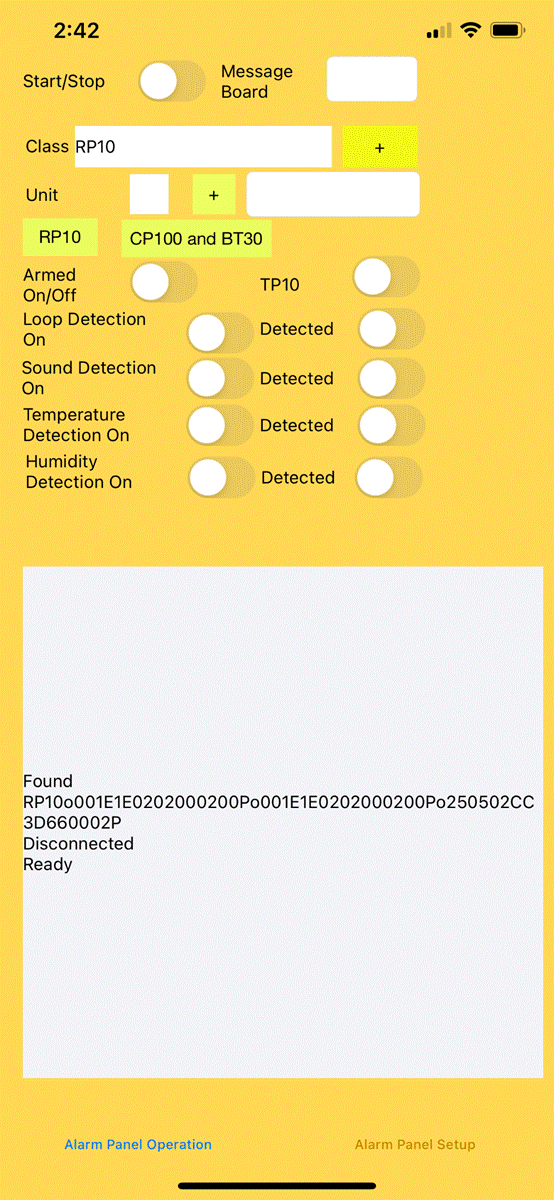

Select RP10 in the class

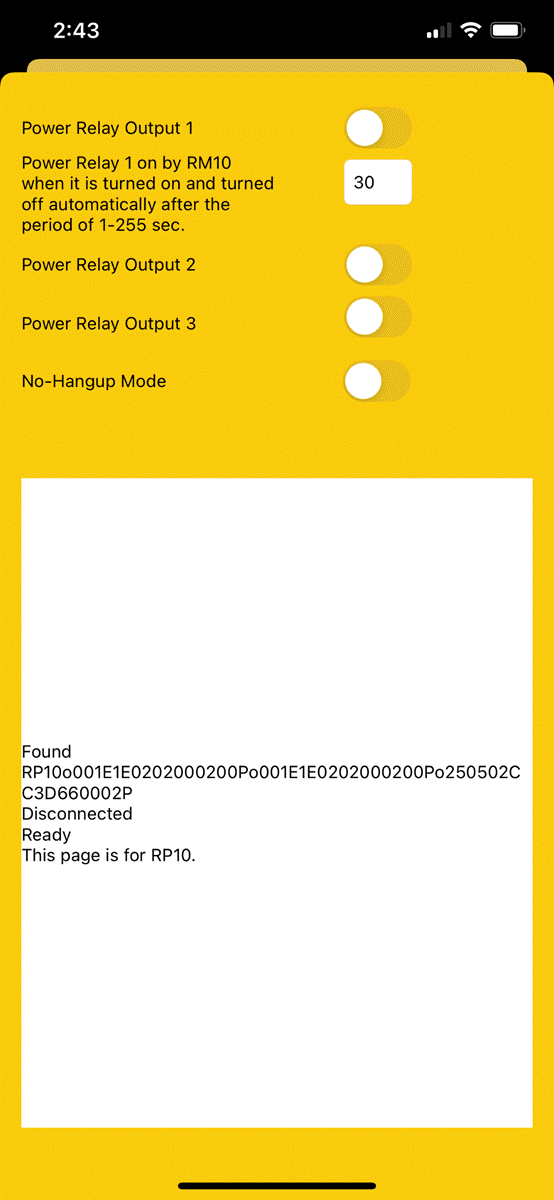

Click “RP10 Menu” and you will see another screen.
Turn “AC Power Output On/Off”
to turn on AC Power.

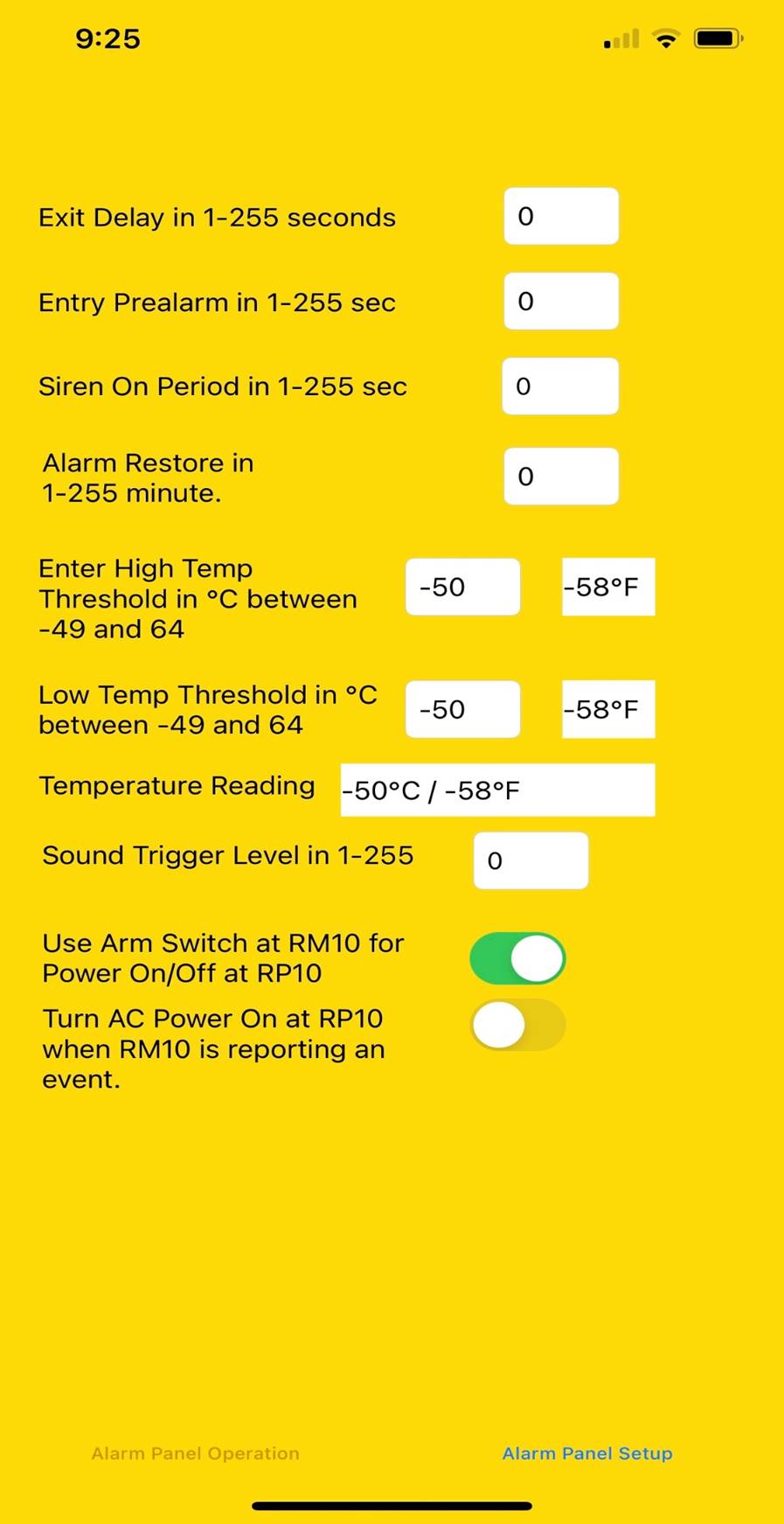

“Use Arm Switch at RM10 for Power
On/Off at RP10” switch is available by Remote Alarm Panel RM10.
“Turn AC Power
On at RP10 when RM10 is reporting an event” switch is also available by Remote

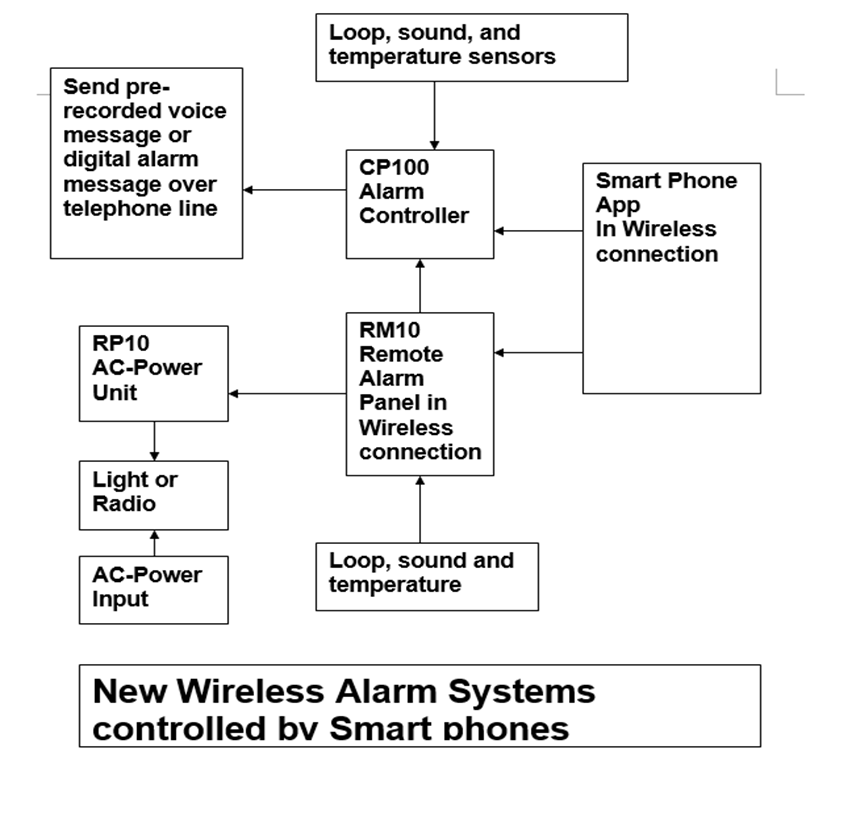

Alarm Panel RM10. In the diagram shown below, any loop, sound or temperature
event at RM10 sends signals to CP100 for transmitting siren and transmitting
digital alarm message or voice message over phone line. At the same time, RM10
sends a signal to RP10 wirelessly for turning power on at RP10.
Made in U.S.A.
Portland, Oregon
U.S.A.
Micro Seven, Inc.
Home Page: www.microseveninc.com
Email: sales@microseveninc.com
