MANUAL SWITCH OPTION

Here are two methods for starting Contact-ID transmission.

Metod 1:

The manual switch option for AP15, AP70, AP80 and other dialer allows starting alarm panel operations for Contact-ID without connecting serial interface cable and executing demo programs. Alarm message and telephone numbers are required to be stored in non-volatile memory.

Recycle power if power is on.

Use HyperTerminal or equivalent.

Set up 9600 baud.

Enter WAC00 to load alarm message and telephone number for storing in non-volatile memory.

Enter “S” and alarm message and carriage return (0xd)

Enter “D” and telephone number and carriage return (0xd)

Recycling the power loads data memory from non-volatile memory.

To confirm your entries:

“U” returns your programmed alarm message.

“T” returns your programmed telephone number.

To start manual switch operation, just push the red start button.

Note: If you program new alarm messages and telephone numbers without the command “WAC00”, non-volatile memory is not affected.

Method 2:

There is a new AP15Demo1A is available at:

www.microseveninc.com/brochap15.htm.

At almost the end of the brochure, click “Download manual and software”.

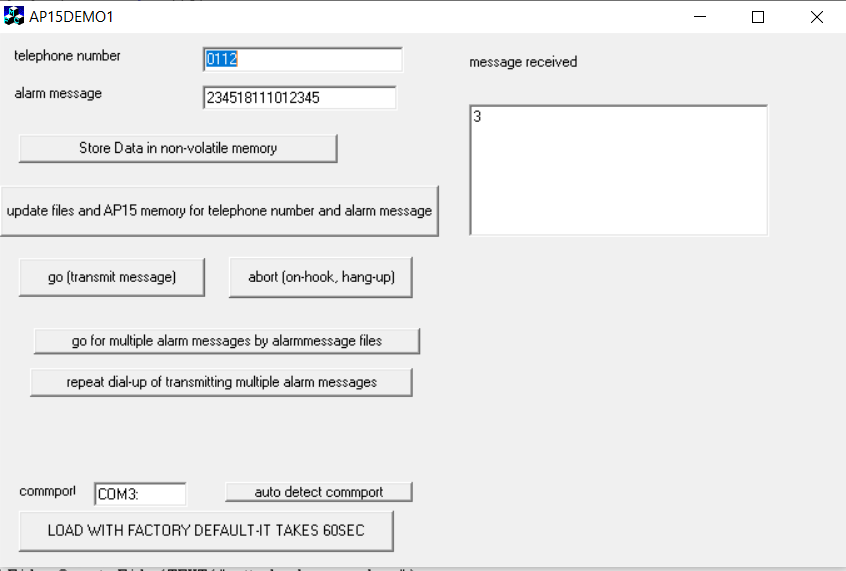

Run “AP15Demo1A” as shown below: Enter telephone number and alarm message in their edit window, and click “Store Data in non-volatile memory”. Exit the app and recycle power of AP15.

Connect a telephone cord between AP15 and telephone line.

Push the front panel button on AP15 to start dialing and sending contact-ID message.
